the features of our zip Screen
the features of our zip Screen
What is the maximum Dimension?
▶ V7 zip screen maximum width up to 6.0m
What is the maximum Dimension?
▶ V7 zip screen maximum width up to 6.0m
windproof
Blocks Harsh Glare
Blocks Driving Rain
UV‑Resistant
All season use
privacy protection
windproof
UV‑Resistant
anti-UV
All season use
Blocks Rainwater
privacy
Automatic Balancing System
proprietary technology
Keeps the zip screen fabric hanging straight and taut
◀ Patented technology for adjusting the height of the installation code by 1cm.
◀ The coil position adjusts automatically while the motor is operating.
Automatic Balancing System proprietary technology
Keeps the zip screen fabric hanging straight and taut
◀ Patented technology for adjusting the height of the installation code by 1cm.
◀ The coil position adjusts automatically while the motor is operating.
◀ The fabric stays vertical relative to both side tracks of the zip screen, preventing friction from physical contact.
This extends the service life of fabric zippers and reduces overall maintenance of the zip screen blind.
▲ The fabric stays vertical relative to both side tracks of the zip screen, preventing friction from physical contact.
This extends the service life of fabric zippers and reduces overall maintenance of the zip screen blind.
Side track internal details of our zip screen
◀ Automotive-grade silicone resists freezing and hardening in sub-zero temperatures.
Effectively resolves fabric wrinkles caused by wind pressure and thermal expansion and contraction.
◀ Hidden zipper sunshade groove anti-wrinkle patented technology.
The zipper is concealed internally, protecting it from accelerated aging and damage caused by direct sun and rain.
Side track internal details of our zip screen
◀ Automotive-grade silicone resists freezing and hardening in sub-zero temperatures.
Effectively resolves fabric wrinkles caused by wind pressure and thermal expansion and contraction.
▶ Hidden zipper sunshade groove anti-wrinkle patented technology.
The zipper is concealed internally, protecting it from accelerated aging and damage caused by direct sun and rain.
V7 zip screen fabric ｜Standard: Fiberglass Fabric
- Class B1 fire retardant.
- Grade 8 color fastness, fade-resistant.
- Mildew-proof, antibacterial, waterproof, mosquito-proof & easy to clean.
▼ Contact us for more color options and open area ratios.
▲ Support custom printed patterns, words & logos on fabric surface.
V7 zip screen fabric ｜
Standard: Fiberglass Fabric
- Class B1 fire retardant.
- Grade 8 color fastness, fade-resistant.
- Mildew-proof, antibacterial, waterproof, mosquito-proof & easy to clean.
▼ Contact us for more color options and open area ratios.
▲ Support custom printed patterns, words & logos on fabric surface.
Accurate Measurement & Installation
▶◀ Measure the opening width at the top, middle and bottom separately. Take the minimum reading as the zip screen width.
▼▲ Measure the opening height on the left, center and right separately. Take the minimum reading as the zip screen height.
Use a laser level for measurement to minimize errors.
▶ Installation Fixing Mode
Built-in installed
Exterior installed
Built-in installed
Exterior installed
PS：Installation manuals & tutorial videos are always provided.

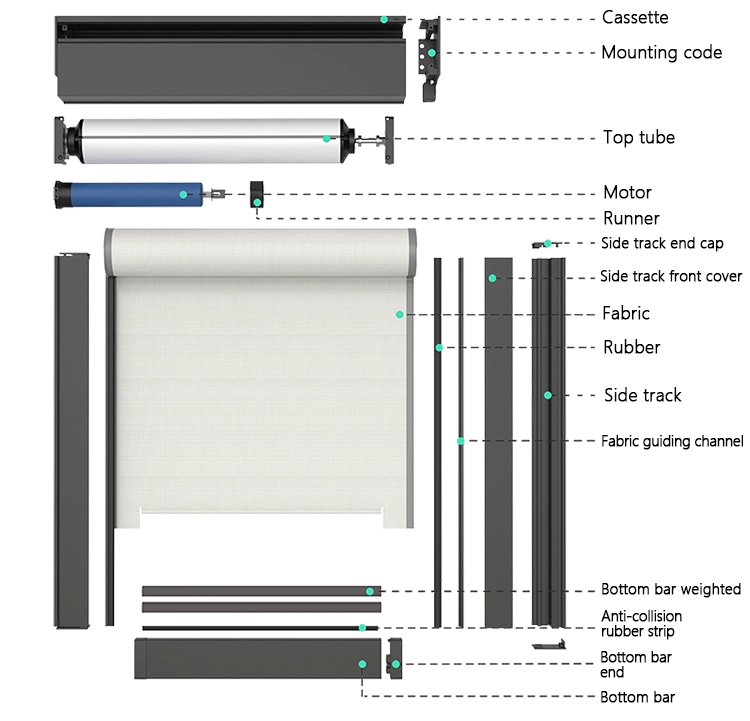

Product Exploded View
Accurate Measurement & Installation
• Measure opening width (top/mid/bottom), take minimum for zip screen width.
• Measure opening height (left/center/right), take minimum for zip screen height.
• Laser level recommended to reduce dimensional errors.
▶ Installation Fixing Mode
Built-in installed
Exterior installed
Built-in installed
Exterior installed
PS：Installation manuals & tutorial videos are always provided.
Exploded View
Get More Product Info
or a Quotation

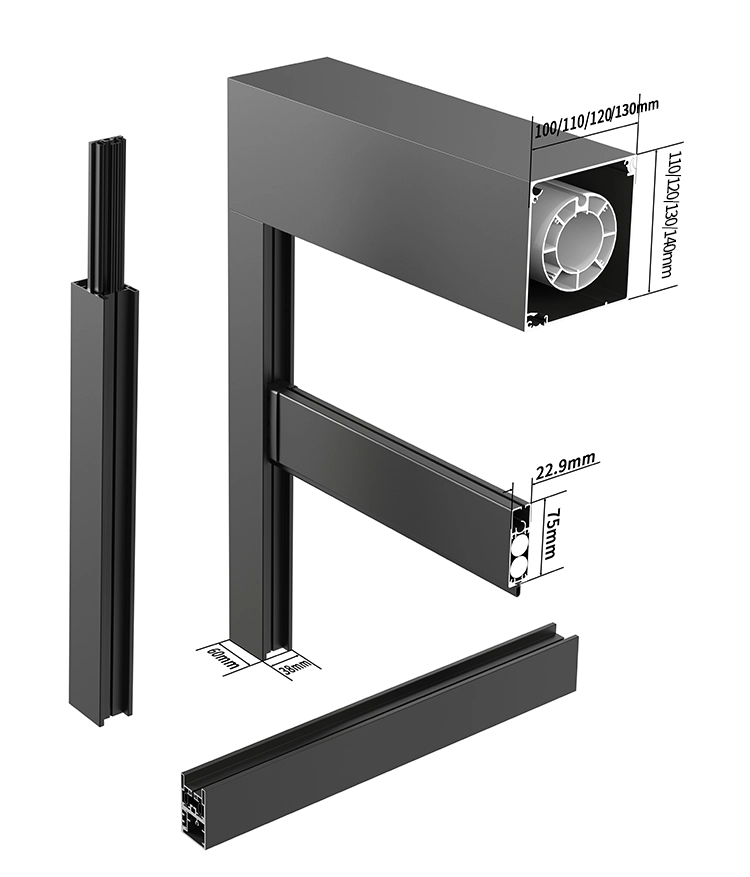

Specification Drawing
φ65 Double-layer aluminum tube
φ70 Double-layer aluminum tube
φ85 Double-layer aluminum tube
φ95 Double-layer aluminum tube
φ105 Double-layer aluminum tube
φ120 Double-layer aluminum tube
▶ Higher hardness, Load bearing within 6 meters width, won’t bend or deform, and no pipe marks on the fabric.
▶ High strength aluminum alloy, Double coil design, middle 8 steel bars are connected.
90 cassette
100 cassette
110 cassette
120 cassette
150 cassette
180 cassette
▶ Front cassette and back cassette split design, easy installation and maintenance.
