• V8 Large size zip blind

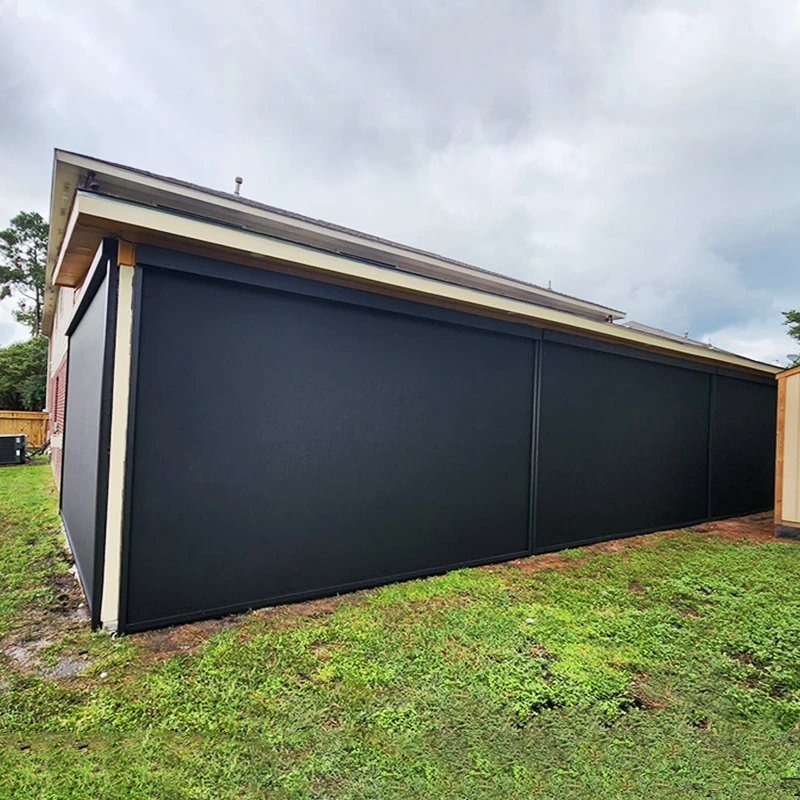

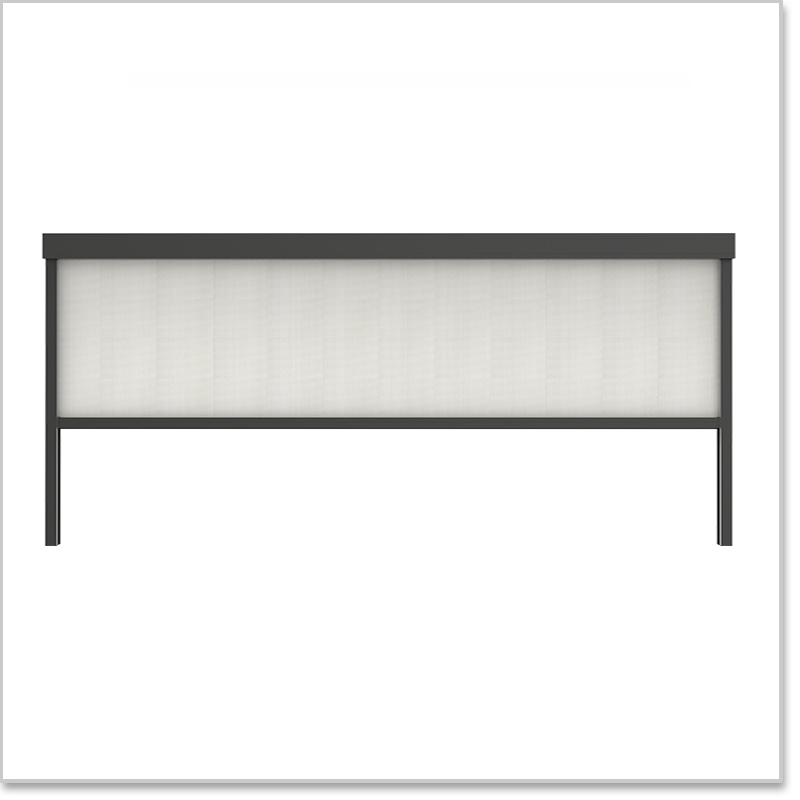

V8 Large Size Zip Blind

  • Automatic balancing system proprietary.
  • Combined rail down patented technology.
  • Coiltube not bending bearing patent technology.
  • Patented zipper guide groove technology.
  • Hidden zipper sunshade groove anti-wrinkle patented technology.
  • Steel belt configuration for enhanced wind resistance.
  • Specialized outdoor blind fabric with Grade 8 color fastness.
  • The aluminum profile can be disassembled and spliced for easy carrying upstairs.

Discover the key features of our zip blinds

Extra-Wide Sizes Available

Customizable | Max Width up to 30m indoor, 15m for outdoor use.

▼

windproof

Blocks Harsh Glare

Blocks Driving Rain

UV‑Resistant

All season use

privacy protection

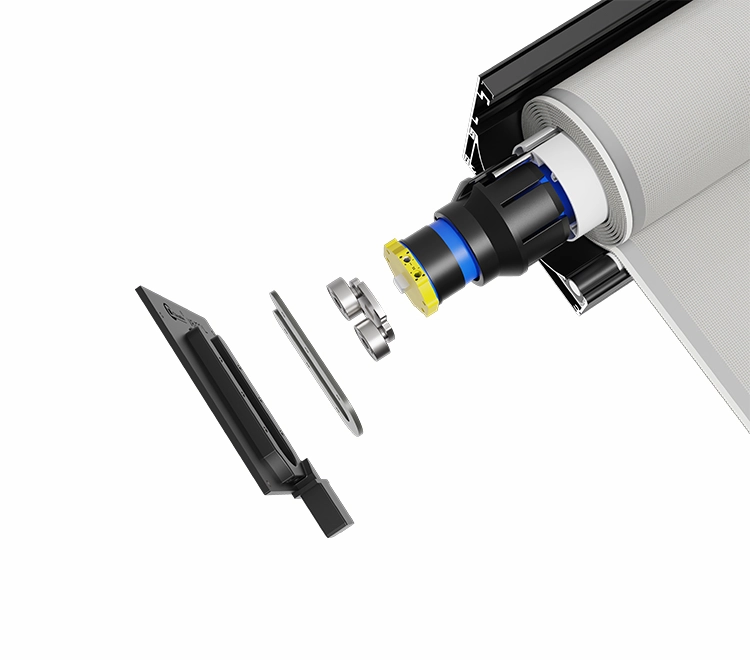

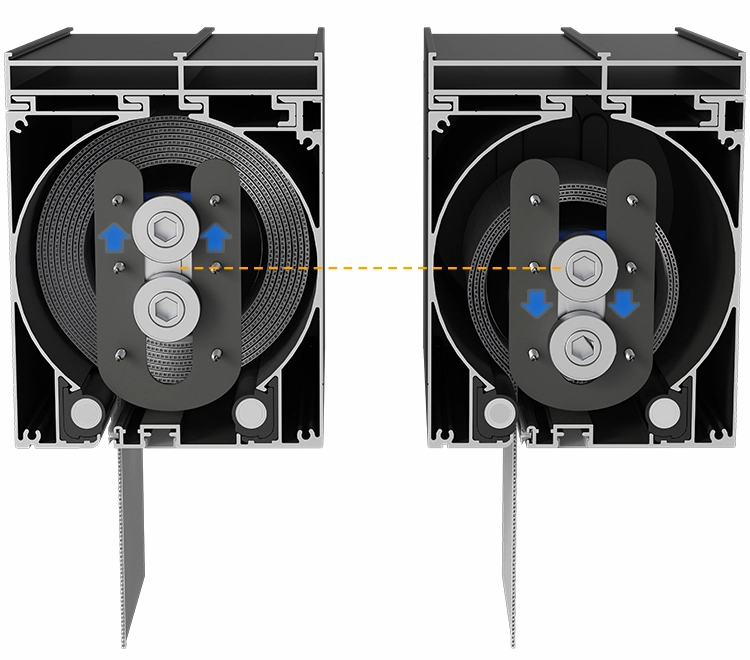

Automatic Balancing System

proprietary technology

Keeps the fabric hanging straight and taut

When the motor is running, the position of the coil can be automatically adjusted.  ▶

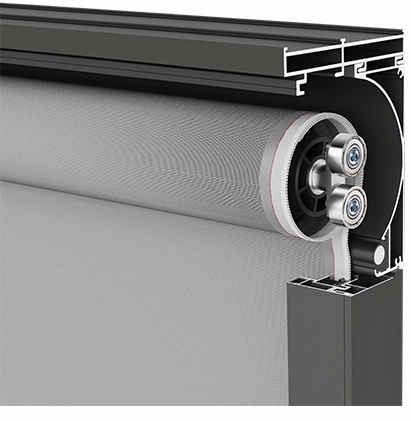

◀ Real-time 90° vertical fabric-to-side track alignment keeps fabric smooth and wrinkle-free.

◀ It is fitted with two rolling pulleys. When the motor drives the roller tube to rotate, the fabric hangs down under the gravitational weight of the bottom rail, which automatically adjusts the roller tube.

▼ No friction against the wind-resistant guide grooves, maintaining smooth vertical movement and extending the service life of the zipper.

internal details of the side track

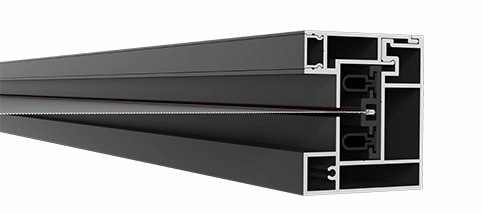

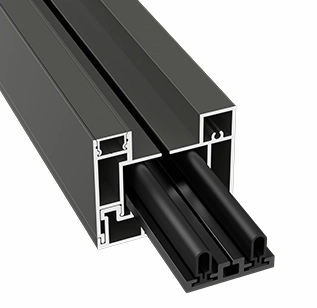

V8 side rail

◀ Automotive grade silica gel, will not freeze or harden even at -40°C.

Effectively resolves fabric wrinkles caused by wind pressure and thermal expansion and contraction.

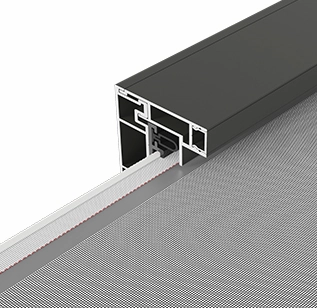

V8 hidden zipper

◀ Hidden zipper sunshade groove anti-wrinkle patented technology.

The zipper is concealed internally, protecting it from accelerated aging and damage caused by direct sun and rain.

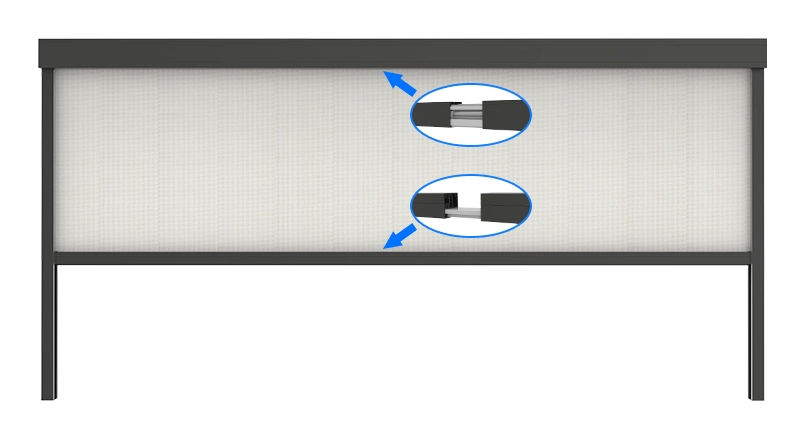

Equipped with weighted bottom rail

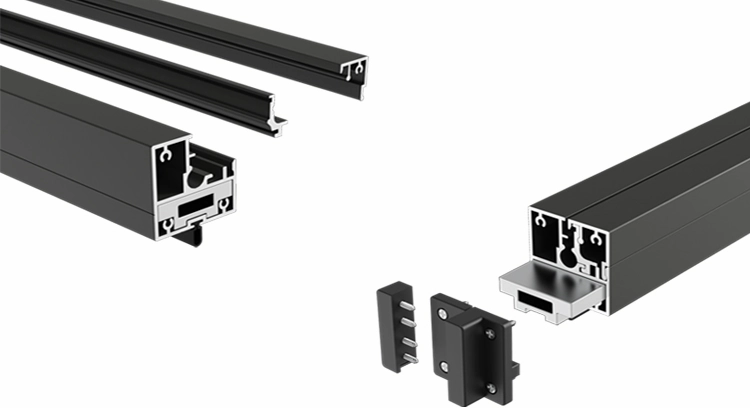

V8 Heavy weight bottom rail

◀ Equipped with a weighted bottom rail to keep the fabric taut, reduce wind‑induced flapping and swaying, guarantee stable and smooth operation.

Anti‑collision rubber strips cushion impacts and protect the bottom rail against damage at full‑down position.

About the fabric ｜Standard: Fiberglass Fabric

  • Class B1 fire retardant.
  • Grade 8 color fastness, fade-resistant.
  • Mildew-proof, antibacterial, waterproof, mosquito-proof & easy to clean.

▼ Contact us for more color options and open area ratios.

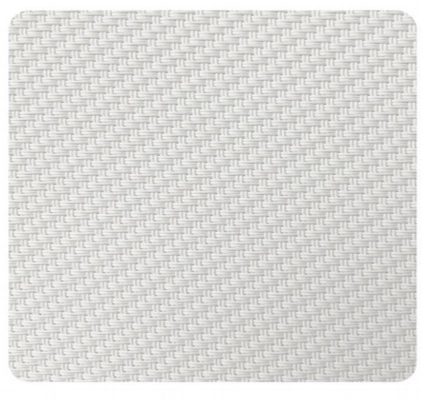

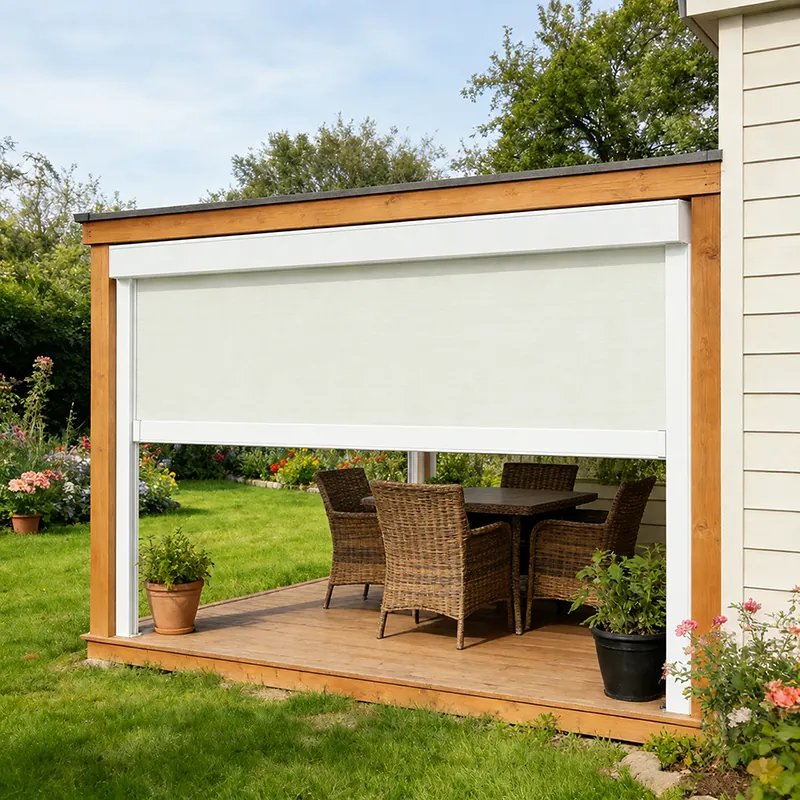

White-1%

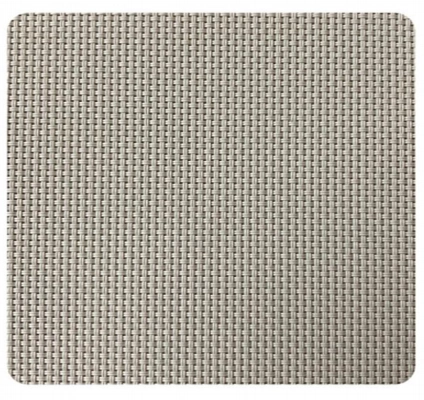

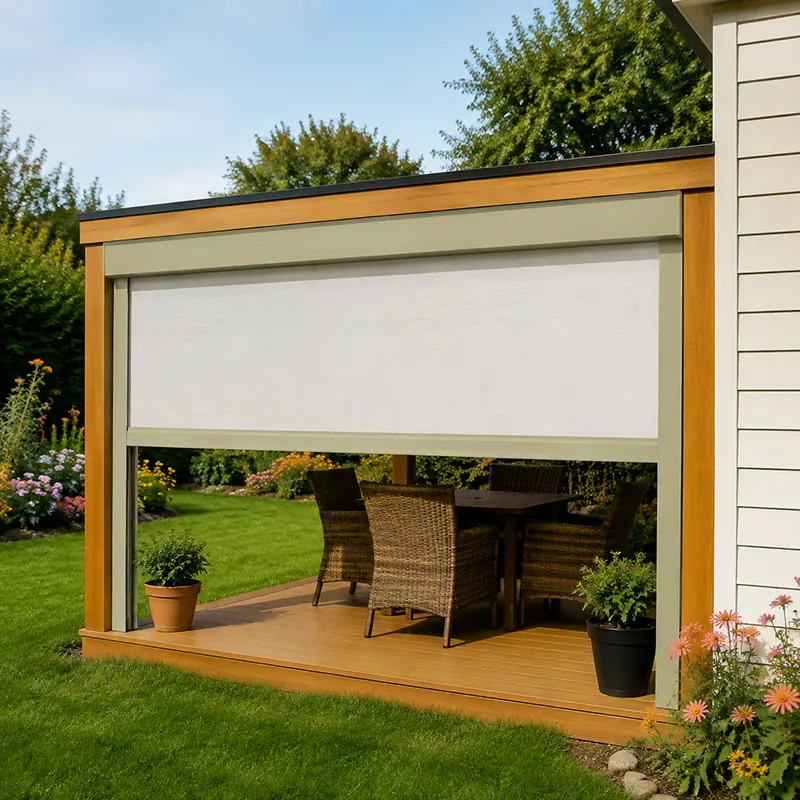

beige 10%

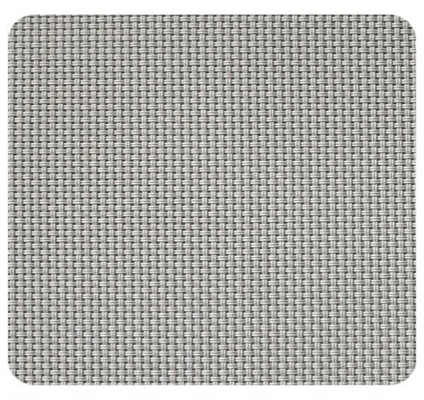

light grey-10%

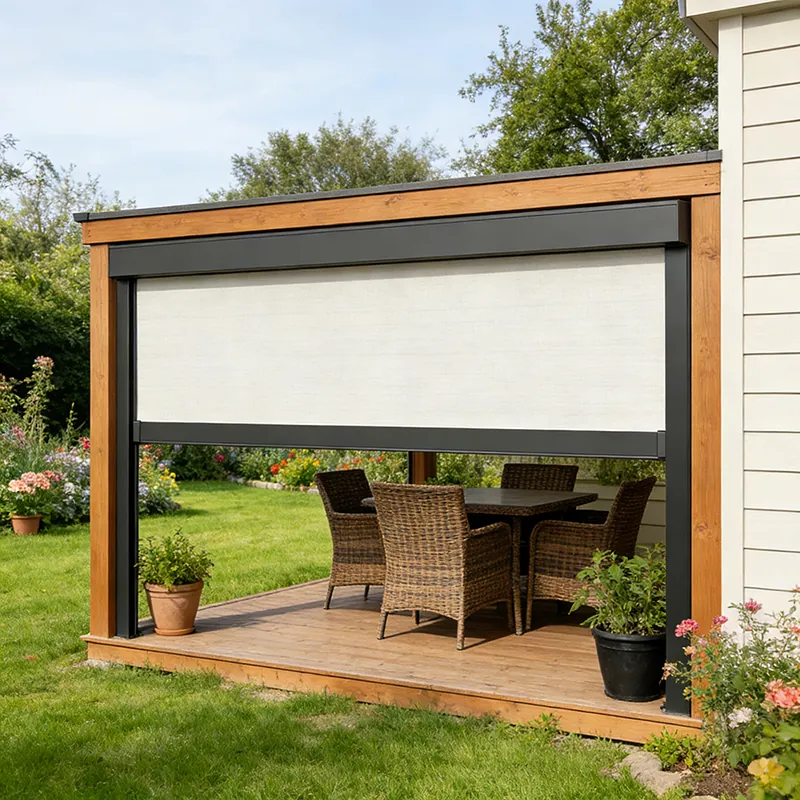

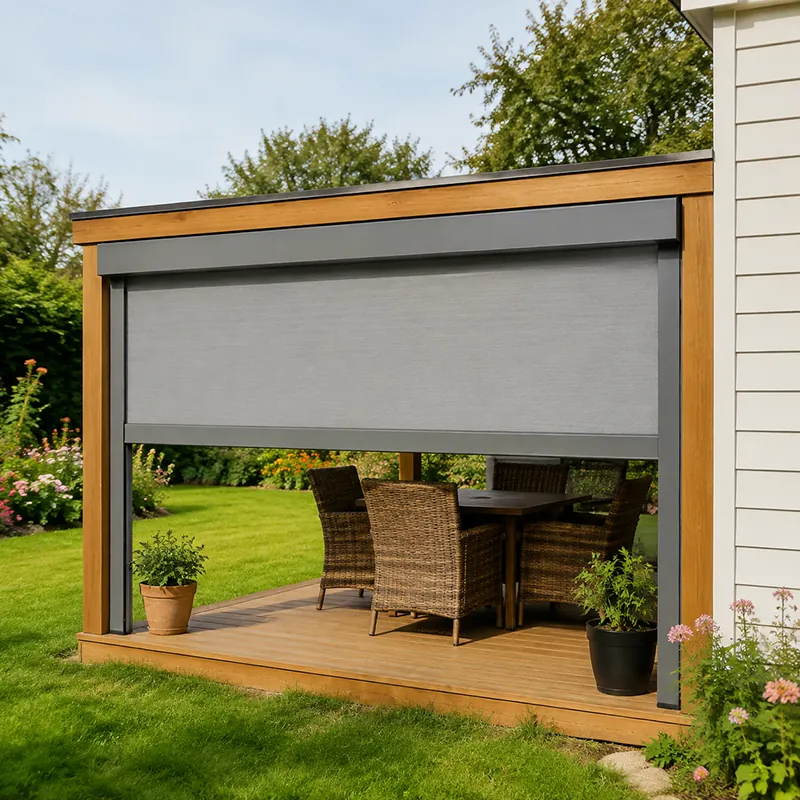

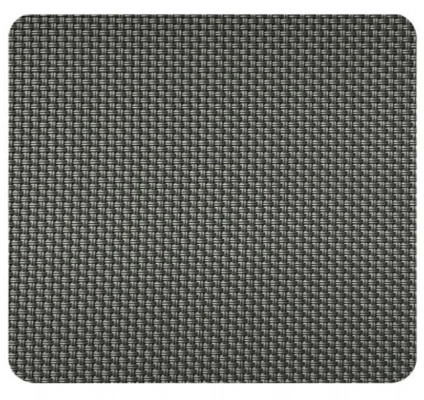

dark grey-10%

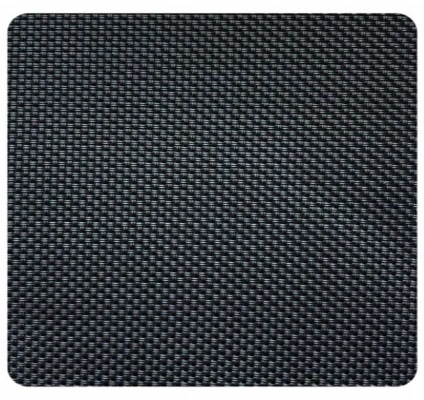

black-10%

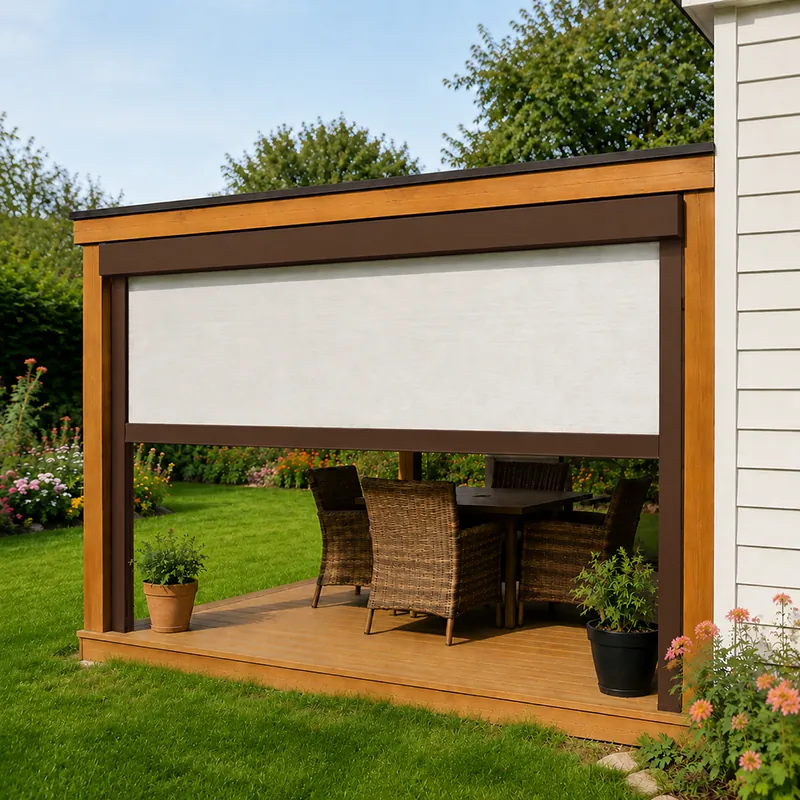

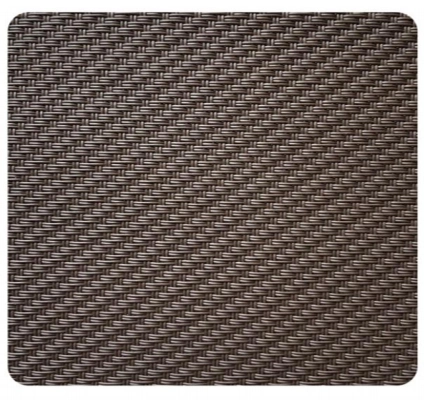

coffee-10%

▲ Support custom printed patterns, words & logos on fabric surface.

Easy Installation & Mounting

▶ Installation Fixing Mode

Window Mounted

Other Mounting

Built-in installed

Exterior installed

Built-in installed

Exterior installed

▶ Drilling Positions

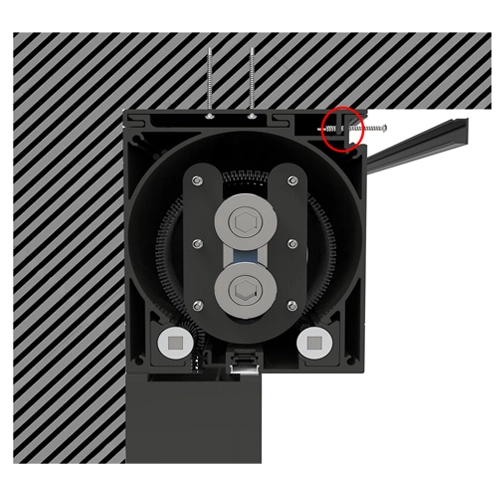

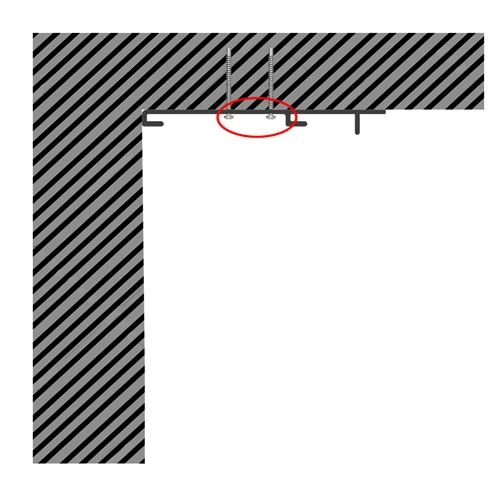

Secure the mounting brackets with screws first.

then fit the cassette into place.

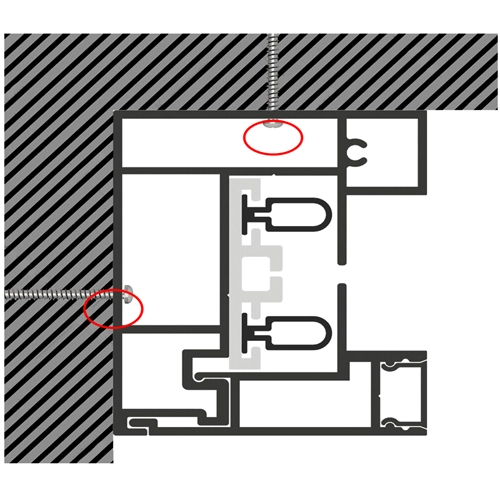

Secure the wall-side screws (Top view)

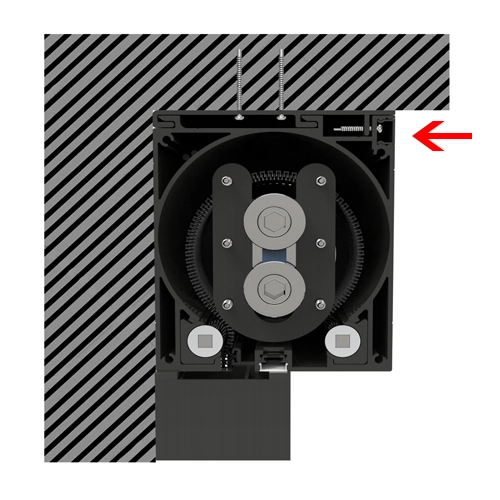

Finally, fit the cover plate.

PS：Installation manuals & tutorial videos are always provided.

Specification Drawing​

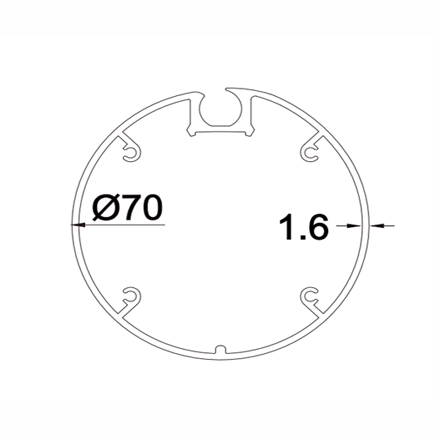

φ70 single-layer aluminum tube

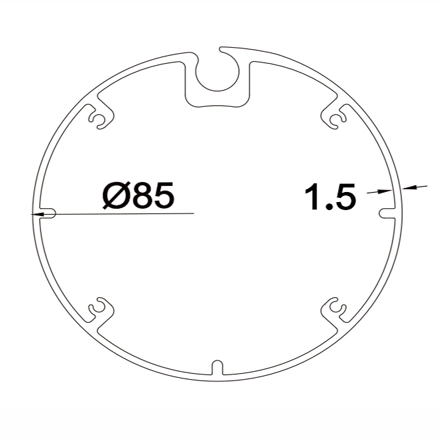

φ85 single-layer aluminum tube

100 cassette

120 cassette with led lighting

140 cassette

▶ The front and rear ends of the roller tube are fitted with crown heads and end plugs, which are matched for use with the balance system and motor.
